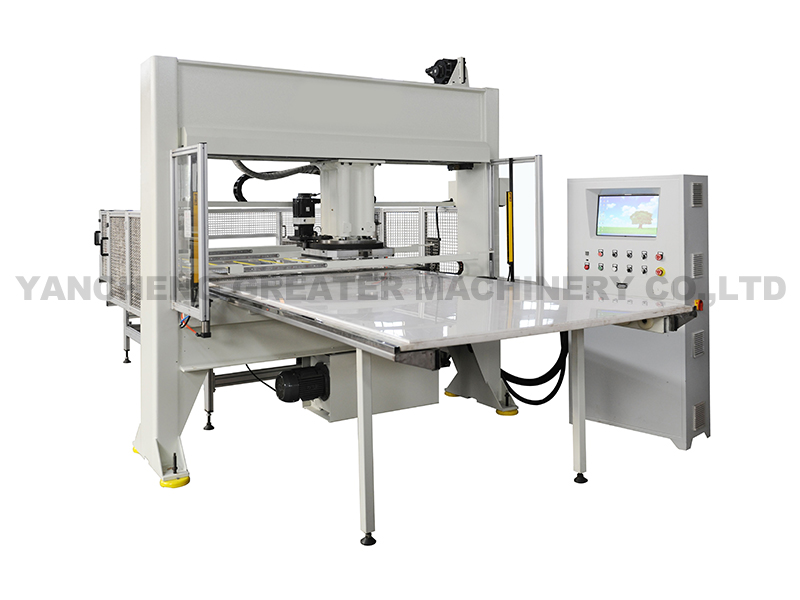

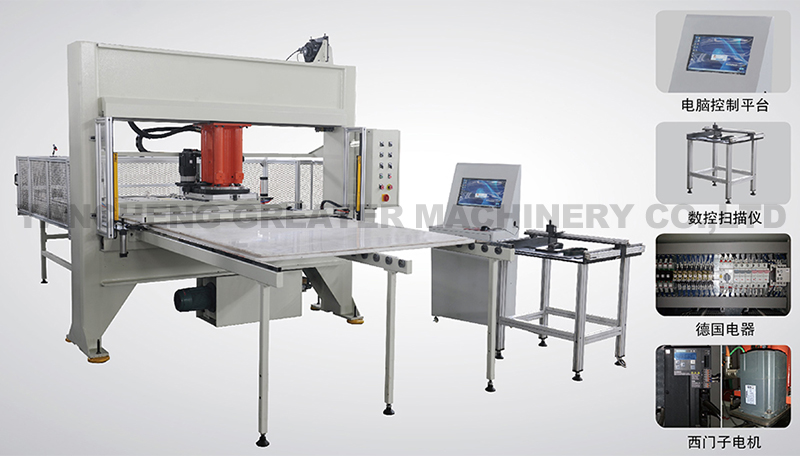

Moving head cutting machine for sheet material with automatic typesetting

USE AND CHARACTERISTICS

1.This machine is used for the continuous die-cutting of various non-metallic sheet materials using the cutting die in apparel, shoes and cap, cultural articles, sports goods industry etc.

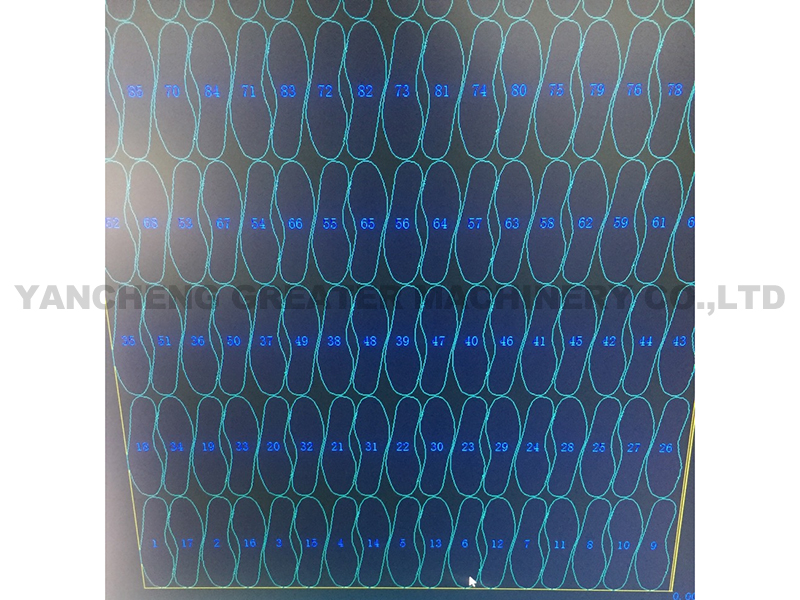

2.The machine uses the upper computer for control purpose and supports copying cutting die, inputting electronic graphics, automatic typesetting etc. It also supports on-screen display and may precisely control machine movement along the directions of X, Y, Z and β.The punch may automatically perform die-cutting according to the position preset using the typesetting software.

3.With memory function, the machine may store various operating modes. Installing a suitable cutting die makes it possible for the machine to implement manufacturing process in the preset operating mode.

4.The machine is driven by a servo motor to ensure accurate feeding. The use of servo motor and ball screw as drive systems enables the punch to achieve precise positioning. The servo motor driven rotary punch ensures accurate die cutting position.

5.The machine supports manual and automatic modes in which operators only need to pick up the finished products. This may help greatly improve working efficiency and reduce labor intensity.

6.The machine is enclosed by protective mesh. The discharge port is provided with safety light curtain to enhance the safety of the machine.

7.Some special specifications may be customized

MAIN TECHNICAL DATA
