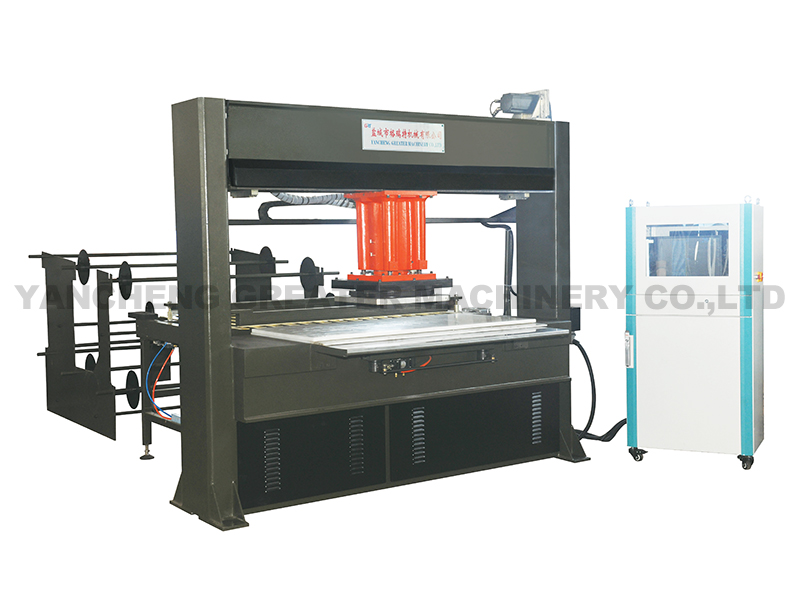

Series moving head type sheet and roll material cutting machine with automatic typesetting software

USE AND CHARACTERISTICS

1.This machine is applicable for the continuous die-cutting of various non-metallic coil and sheet materials using the cutting die in apparel, shoes and cap, medical instrument, cultural articles, sports goods industry etc

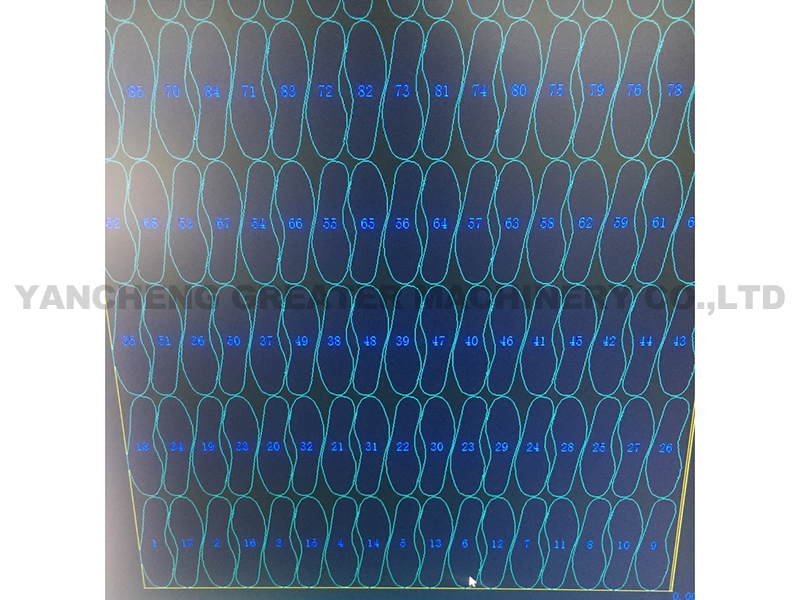

2.The machine uses the upper computer for control purpose and supports copying coning die.. inputting electronic graphics, automatic typesetting etc. If also supports on-screen display and may precisely control machine movement along the directions of X, Y, Z and p The punch may automatically perform die cutting according to the position preset using the typesetting software.

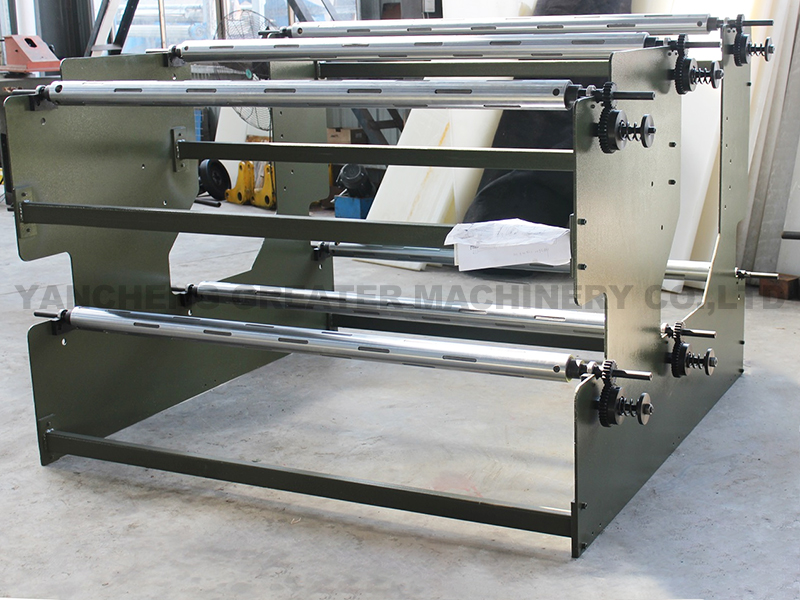

3.This machine has a sled type feeding mechanism and supports automatic circulatory spreading. It may be user) for the die cutting of extremely thin and soil coil materials, as well as sheet materials.

4.With memory function, the machine may store various operating modes. Installing a suitable tuning die makes it possible for the machine to implement manufacturing process in the preset operating mode.

5.The machine is driven a servo motor to ensure accurate feeding, The use of servo motor and ball screw as drive systems enables the punch to achieve precise positioning. The servo motor driven rotary punch ensures accurate die cutting position.

6.The machine supports manual and automatic modes which operators only need for pick up the finished products. This may help greatly improve working efficiency and reduce labor intensity.

7.The machine is enclosed to protective mesh. The discharge port is provided with safety light curtain to enhance the safety of the machine.

8.Some special specifications may be customized.

TECHNICAL SPECIFICATION
