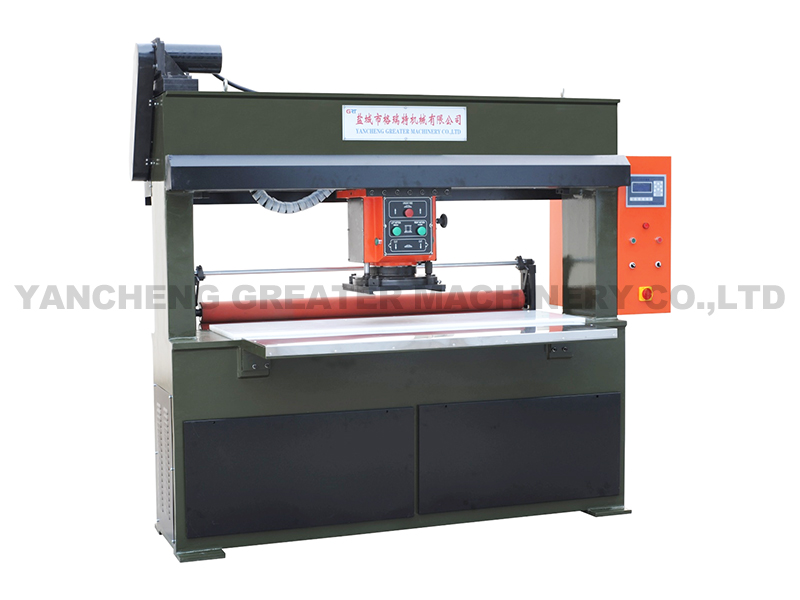

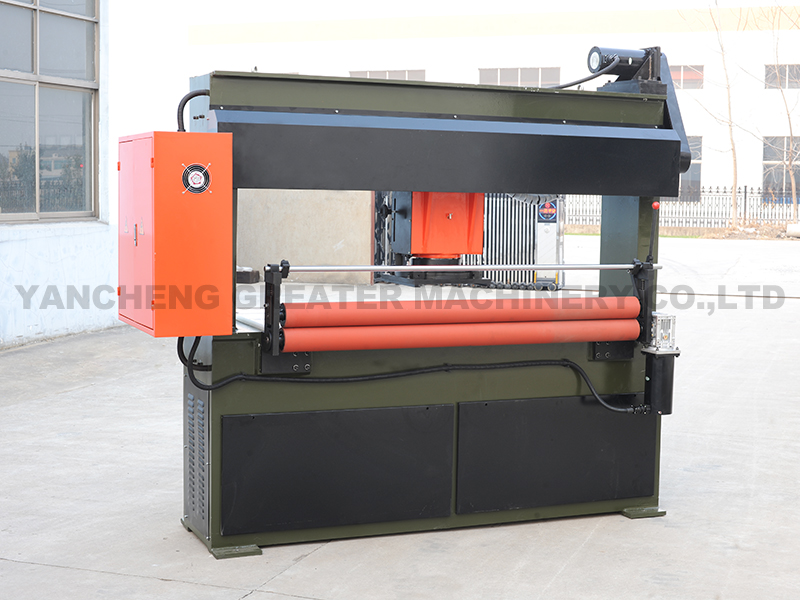

XCLL2 Series automatic twin-roller feeding & traveling head cutting machine

USAGE AND CHARACTERISTICS:

1.The machine is applicable to continuous cutting operation of nonmetal rolled materials of same specifications and large batches by cutting die. For example: used in such industries as football, volleyball, tennis, sand paper and medicine etc.

2.The microcomputer controls the coordinative movement of horizontal moving shaft and feeding shaft of machine to make the machine automatically complete the cutting of materials, and the displacement distance of cutting head and feeding length can be accurately set, which has greatly reduced the consumption of leftover materials and saved almost 10%~15% of raw materials.

3.The machine has various working modes such as inching, manual and automatic etc. modes. The workers need only to pick up the finished materials, with labor intensity reduced and work efficiency enhanced.

4．The machine has cutting modes of stagger, stagger blade reducing and die cutter rotation etc., which can greatly reduce the consumption of materials.

5．As the machine is controlled by microcomputer with high automation degree, only one worker is required for the whole machine, so that the production efficiency can be enhanced for 3-5 times and the power can be almost 1/3 saved.

6．With special setting mechanism, and in conjunction with die cutter and cutting depth setting, the travel adjustment is simple and accurate.

7．Optional:

 cutting board micro-movement device; products of special specifications can be customized.

 Technical specification:
