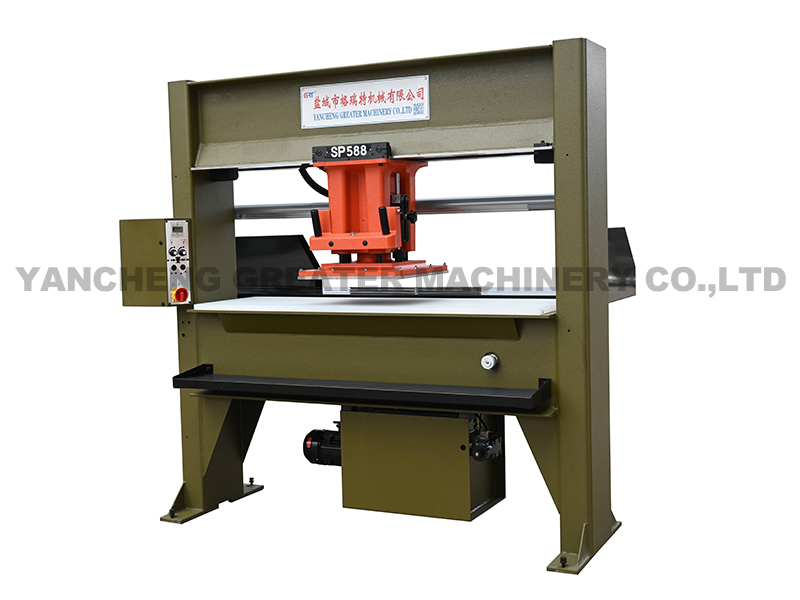

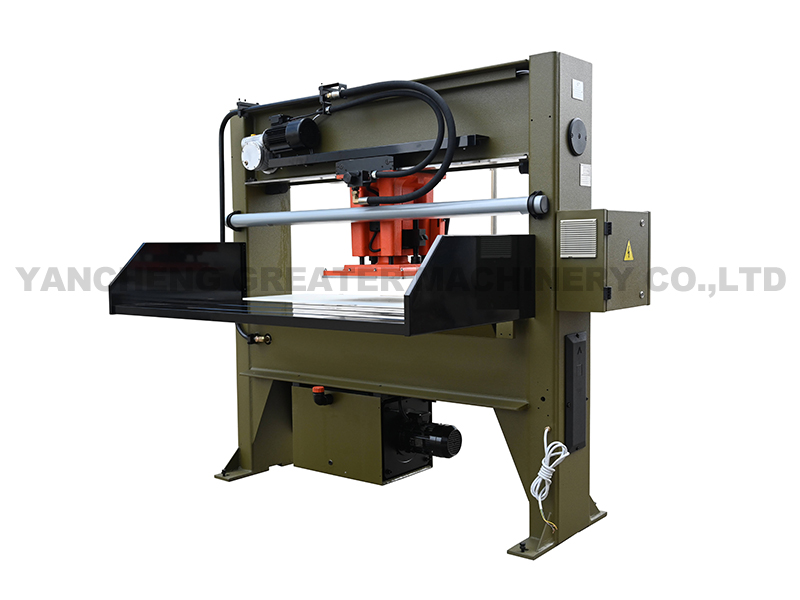

Sp588 hydraulic traveling head cutting machine
1.Main features
1.Push button controls(time interlock synchro-nization during cutting phase) to ensure positive safety for the operator
2.Really exceptional trolley displacement speed
3.High power continuity
4.Low energy consumptions
5.High reliability,no primary maintenance required
2. Main Technical Data
Model | GRT-588/25 |
Max Cutting Force | 25T |
Worktable Area | 1600×500mm |
Cutting Head | 500×500mm |
Adjustable Stroke | 5-100mm |
Max.daylight(without pad) | 143mm |
Main Motor Power | 2.2KW |
Trolley motor | 0.75KW |
Trolley displacement speed | 1.07mm/s |
Machine Dimensions | 1940×1400×2010mm |
Net Weight | 1430kg |
Machine configuration | |
Pump and Valve | made in TAIWAN |
Sealing ring | made in ITALY,JAPAN |
frequency converter | made in JAPAN Toshiba |
Cutting switch | made in GERMANY |
