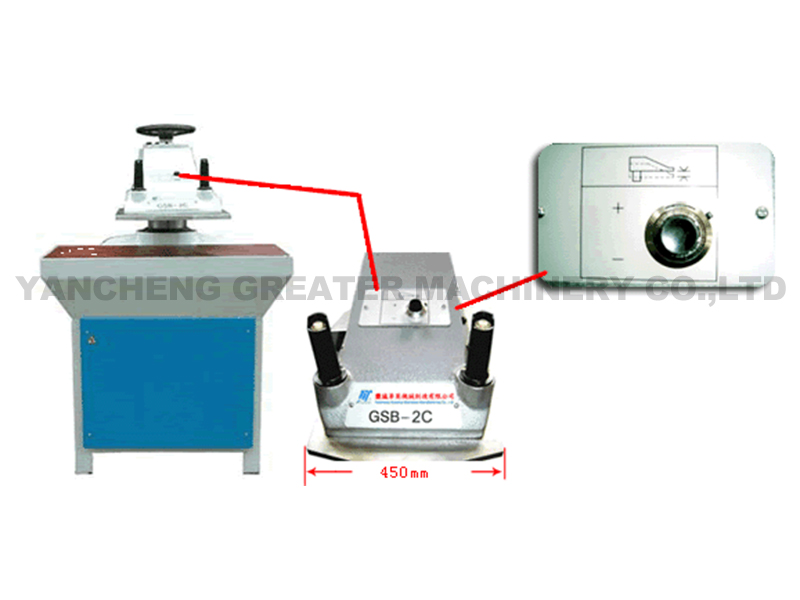

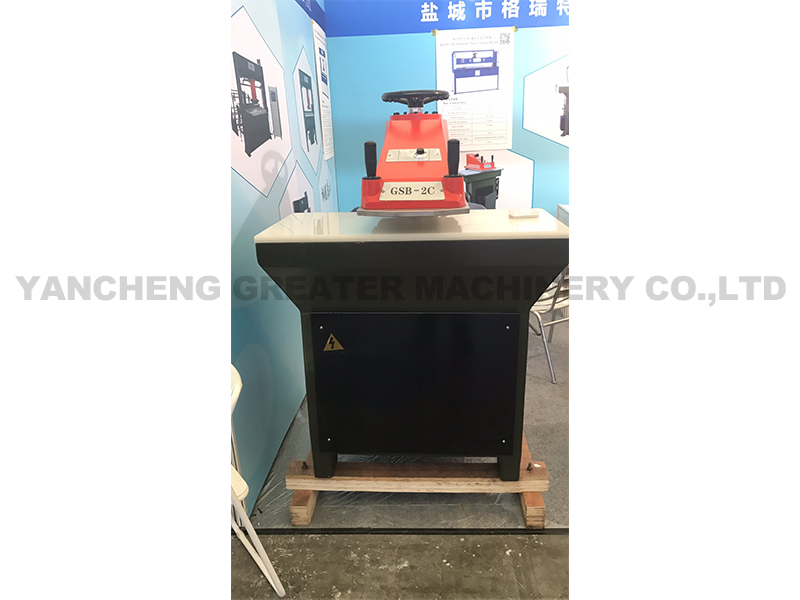

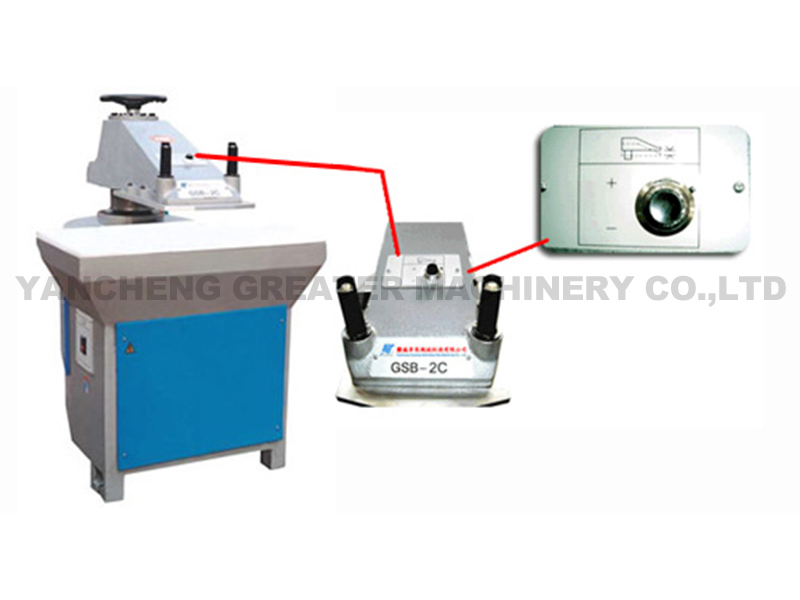

GSB-2C Seires hydraulic swing arm cutting machine
USAGE AND CHARACTERISTICS
Used to scissor up plastic boards, leather, fiber, cotton fiber, paper cartons and other similar materials;
1. Safe, two-hand trip operation ;
2.Equipped with lubricating system to lessen wear and prolong service life;
3. Lower limit of stroke is controlled by a time-lapse circuit with high precision, so it can make high-quality shoes;
4.People can adjust height of sway arm from table by simple handle, convenient, stable.
MAIN TECHNICAL SPECIFICATION
Model | GSB-2C/12 | GSB-2C/20 | GSB-2C/25 |
Max cutting force | 12 Tons | 20 Tons | 25 Tons |
Arm width | 330×450 | 350×550mm | 450×550mm |
Stroke adjustment | 5-55mm | 5-75mm | |
Cutting speed | 0.10m/s | ||
Distance Between Upper Board And Worktable | 65-140mm | 65-150mm | |
Table area | 900×410mm | 1000×500mm | |
Motor power | 0.75KW | 1.5KW | |
Electric Supply Voltage | 3x440/415/400/380 /220V, 50/60 Hz Single phase 240V/220V, 50/60 Hz | ||
Packing Size(LXWXH) | 1000X1000X1600mm | 1150X1150X1700mm | |
Weight | 850KG | 1000KG | 1050KG |
Remark:You can choose any color for the machine.
Machine configuration | |
Machine body | Casting |
Swing arm | Aluminum casting |
Solenoid valve | Camel brand,made in TAIWAN |
Oil pump | Camel brand,made in TAIWAN |
Sealing ring | NOK brand,made in ITALY and Japan |
PCB,Potentiometer | Made in TAIWAN |
